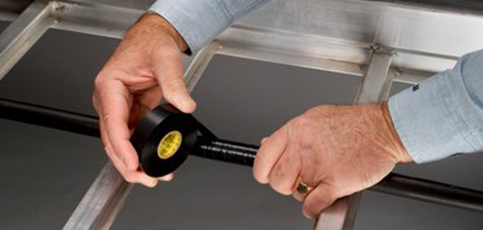

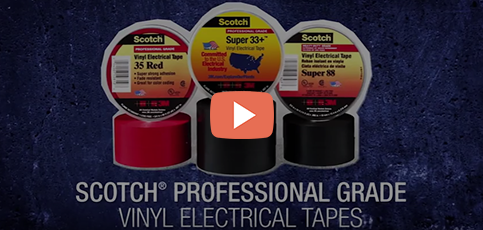

Scotch® Super 33+™ Vinyl Electrical Tape

• Premium grade, 0.18 mm thick, flame retardant, all weather insulating tape
• Excellent resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather condition
• Moisture-tight electrical and mechanical protection

• Application: Primary insulation for splices up to 600V and 105°C; protective jacketing in indoor and outdoor environments

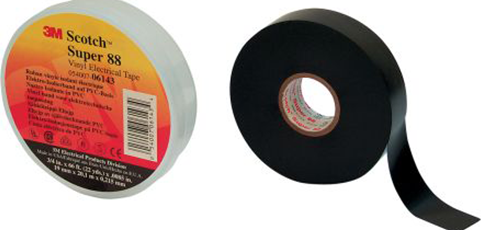

Scotch® Vinyl Electrical Tape Super 88

• Premium grade, flame retardant vinyl insulating tape
• Excellent resistance to abrasion, moisture, alkalis, acids and corrosion
• Excellent all weather performance in cold to -18°C or hot to 105°C
• Compatible with solid dielectric cable insulations, and rubber and synthetic splicing compounds

• Application: Primary insulation for all wire and cable splices rated up to 600 volts and 105°C; protective jacketing for high voltage cable splices and repairs; harnessing of wires and cables

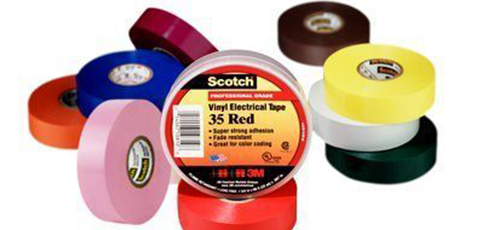

Scotch® Vinyl Colour Coding Electrical Tape 35

• 0.18mm thick, PVC-colour coding, flame retardant tape
• Usable across a wide temperature range: 0°C to 105°C
• Available in a range of fade resistant colours

• Application: Phase identification and colour coding of motor leads and piping systems; harnessing; insulating splices up to 600 volts

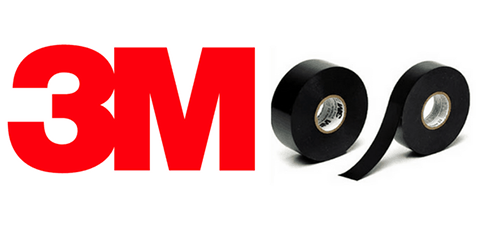

Scotch® Heavy Duty Vinyl Electrical Tape 22

• One of 3M’s thickest premium electrical tapes, 0.25 mm thick
• Ideal for applications which demand greater mechanical strength and abrasion resistance
• Moisture-reistant electrical and mechanical protection with fewer wraps than thin tapes

• Application: bus bar insulation; cable jacket repair

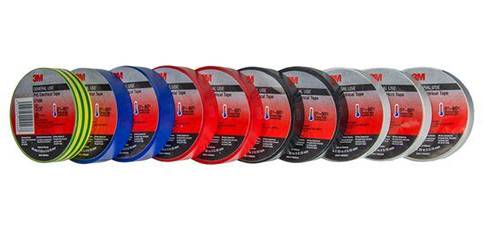

3M™ PVC Electrical Tape 1710N

• Good quality general purpose PVC insulating tape
• Flame retardant, high wet dielectric strength and excellent mechanical protection
• Available in various colours

• Application: Low voltage electrical insulation up to 600 Volts; moisture sealing

3M™ Temflex™ Vinyl Electrical Tape 1500

• 3M™ Temflex™ Vinyl Electrical Tape 1500 is a 0.15mm thick professional PVC insulating tape suitable for indoor or outdoor use.
• Offer good resistance to abrasion, acid, alkalis and varying weather conditions – including sunlight
• Provides high electric strength
• Keeps a high level of performance in ambient temperatures up to 90°C
• Available in industry standard colours

3M™ Temflex™ Vinyl Electrical Tape 150

• Easy to apply
• Light duty
• Flame retardant
• Strong Adhesive
• Basic electrical and hardware application
• Available in different colours.
• RoHS 2.0 and REACH Certified

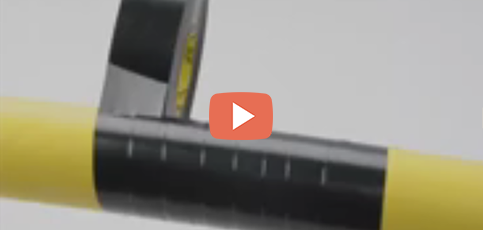

3M™ PVC Sealing and Insulating Tapes

These are self-fusing insulating compounds designed to insulate, moisture-seal connections up to 600 volts, and have excellent resistance to abrasion, moisture, alkalies, acid, copper corrosion and changing weather conditions.

Scotch® Glass Cloth Tape 27, Tape 69

• 0.18 mm thick woven insulating glass cloth tape
• Pressure sensitive rubber thermosetting adhesive
• Designed to operate in 600 V dry applications which require high temperature resistance

• Application: Heat stable insulation for furnace and oven controls, motor leads and switches; corrosion free protection

• Scotch® 27 is an acrylic adhesive, UL rated for 155°C and Scotch® 69 is a silicon adhesive, UL rated for 200°C
• Approvals and certifications–UL & CSA: Underwriters’ Laboratories Listed and Canadian Standards Association Certified insulating tape

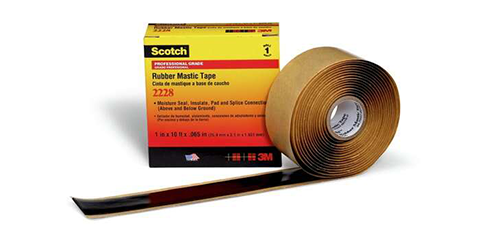

Scotch® Rubber Mastic Tapes 2228

• 1.65mm thick, self-fusing rubber electrical insulating and sealing tape
• Ethylene propylene rubber (EPR) backing coated with a strong, temperature-stable mastic adhesive
• Quick application build up
• Designed for electrical insulation and sealing applications

• Applications: primary electrical insulation up to 1000 V; insulation, padding and sealing bus bar connections rated up to 35 kV; environmental and moisture seal

3M™ Scotchfil™ Electrical Insulation Putty

• Ideal for use on highly irregular surfaces such as fittings and valves, providing a smooth, waterproof surface
• Elongation: 1000%
• Maximum operating temperature: 0 to 80°C

• Applications: Insulation of connections up to 600 V

• Smoothening bus bar irregularities
• Shaping and padding for split bolt connections

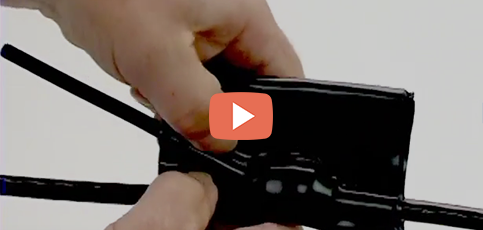

Scotch™ Vinyl Mastic Tape 2210/Vinyl Mastic Pad 2200

• Vinyl and mastic tape combined into one – developed to provide low voltage insulation, seal out moisture and protect corrosion
• Dielectric strength: 11.8 KV/mm

• Applications: Cable sheath repair; splice case and load case protection; conduit repair and protection of cable network components; auxiliary sleeve and cable reel and sealing; drop wire insulation

Scotch™ Cable Jacket Repair Tape 31

• Tough abrasion-resistant backing for jacket repair on industrial cables
• Suitable for flexible portable power cables, draglines, diesel locomotive cable, welding, shipboard cables and cable stacker reclaimer in power plants
• Flexible, self-fusing property of the mastic helps keep out moisture

• Applications: cable jacket repair on electric cables in extremely harsh environments; suitable alternative to wrap around sleeves and heat shrinkable sleeves.

3M™ HT Insulating Tapes

High voltage, self-fusing tapes–preferred by electrical professionals for electrical maintenance jobs

3M™ Scotch™ 23

• Highly confirmable, self-fusing PPR based, high voltage splicing tape
• The excellent self-fusing property makes it the first choice for electrical contractors and electrical maintenance professionals for cable splicing, cable jointing, sealing and insulating
• Scotch 23 is RoHS compliant, 2002 – 95 – EC

3M™ Scotch™ 70

• High temperature, class H, HT self-fusing anti-tracking silicon rubber tape
• Scotch 70 is a premium range of silicon rubber tape used by electrical professionals for all their high temperature splicing applications, specially used for outdoor conductor insulations, termination tops, HT motor lead connections and busbar splicing
• Scotch 70 C has a shelf life of 5 years and temperature rating of 180°C and can be used up to 69 KV

Scotch™ 130C

• Liner-less self-fusing, high voltage splicing tape with mastic property for faster wrapping
• 3M™ 130 C professional grade HT tape is the premium choice for all electrical maintenance professionals for termination and sealing, conductor and busbar splicing, inline bolt splicing
• Scotch 130 C has a shelf life of 5 years and temperature rating of 130°C and can be used up to 69 KV

3M™ Special Use Tapes

These tapes are designed and developed for special applications ranging from assembly, attachment, bonding and mounting to strengthening old cables and splices.

3M™ Scotchrap™ Corrosion Protection Tape 50

• Tough PVC tape with high tack adhesive that resists corrosion of metal piping systems
• Applicable over a wide temperature range resistant to impact, abrasion and punctures

• Applications: For protecting pipes, conduits and fittings from corrosion

3M™ Armorcast Structural Material

• 3M™ Armorcast Structural Material is a flexible fibreglass knit fabric strip that has been saturated with a curable black urethane resin syrup that starts to cure when water is added
• Resistant to moisture, fungus, acid, alkali, ozone, sunlight, gasoline and high temperatures
• Long life and low on maintenance

• Applications: For creating maintenance free mechanical protection for power cable splices; for strengthening old cable, splices and auxiliary seals

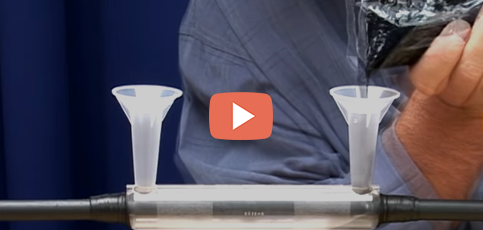

3M™ Scotchcast™ Resin Cable Joint Range

• 3M™ Scotchcast™ Resin Low Voltage Cable Joints include 3M™ Scotchcast™ 90A series, Scotchcast™ 82A series, Scotchcast™ 92NBA series and Scotchcast™ SLA series
• The unique Scotchcast™ series is offered in a unipack resin, flexible moulds and splicing tapes for quick and easy joints
• Joints suitable for low voltage straight through joints, Y-branch, T-branch applications for single core & multi core cables from 4 sq. mm to 300 sq. mm
• Especially suitable for low voltage joints in chemically hazardous areas
