The 3M™ Heat Shrink Splice Kit consists of heat shrinkable tubing, moulded parts, mastics and other accessories for making a complete joint. The joints are available for 11, 22 & 33 kV. The kit provides a lightweight, compact and environmentally sealed system for splicing extruded dielectric shielded power cables.

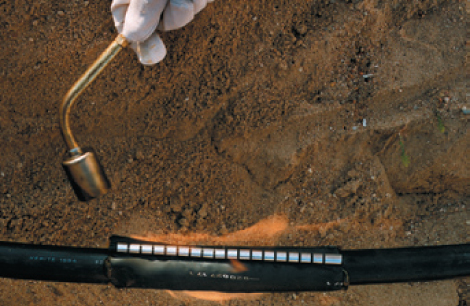

All the heat shrinkable components are supplied in an expanded state and would shrink effectively on application of heat.
Kit Components
- Lug Sealing Tubes to meet the outdoor conditions and performance requirements of medium voltage power cable and splices
- Stress Control Tubes
- Lug Sealing Tubes to protect interface between the splice lug and the cable core
- Lugs to provide high-performance connections
- Cleaning Solvent Pouches to clean the XLPE insulation surface
- Worm Clips to ensure good electrical connection
- Tinned Copper Braid to protect conductive wiring from interference
- Stress Control Mastic
- Sealing Mastic for sealing medium voltage cables and accessories and covering sharp edges
- PVC Insulation Tape
- Ferrules to protect against damage, splitting or wear
- Black Sealing Mastic
- Tartan Tape
- Stress Grading Mastic
- Steel Canister
Specifications
- Quick cable preparation
- Suitable for all types of conductors and connection shapes
- Environment sealing by specially developed sealants
- Effective and reliable stress control
- Compact dimensions
- Immediate energisation possible
