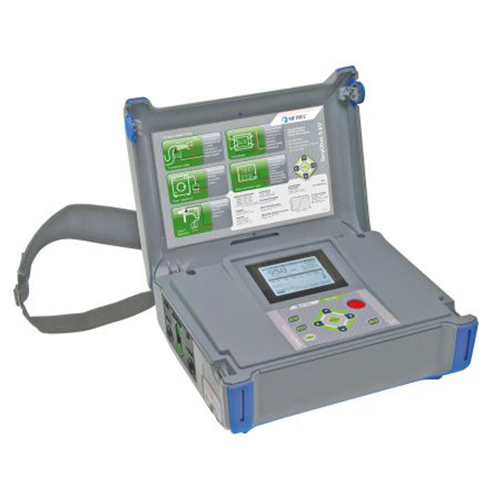

The MI 3210 TeraOhm XA 10kV is a portable, battery or mains powered test instrument with excellent IP protection (IP65). This instrument is designed for diagnosing of Insulation Resistance by using high DC test voltages of up to 10kV.

It is best suited for industrial environments because of its robustness and high immunity to radiated RF fields.

Applications:

• Measuring transducers in distributions networks
• Power transformers
• Testing insulation resistance of rotating machinery and cables
• Production line periodic testing and maintenance
• Troubleshooting and analysis of all kinds of insulation problems
• High voltage generators
• Surge arrestors

Key Features:

• Insulation resistance up to 20 TΩ
• Adjustable test voltage (50 V...10 kV) 50 V and 100 V step
• Programmable timer
• Capacitance measurement
• Charging rate for capacitive load < 3 s / µF at 10 kV
• Automatic discharge of test object after completion of measurement
• Guard terminal
• High voltage breakdown detection
• Custom defined tests
• Auto adjustment function
• Measurement results in numerical and graphical form
• PC software HVLink PRO for downloading and analyzing of the test results and test report printing
• Isolated RS232 and USB communication ports, BT interface
• High quality accessories including shielded test leads in standard set
• High EM interferences protection: Input AC current noise rejection (1 mA∞600 V) and additional averaging of the result (5, 10, 30, 60)
• CAT IV / 600 V
• Mains and rechargeable battery power supply

Measuring Functions:

• Insulation Measurement
• Diagnostic Test (PI, DAR, DD)
• Step Voltage Test
• Withstanding Voltage Test (DC) up to 10 kV
• Voltage and frequency measurement up to 550 V TRMS.
