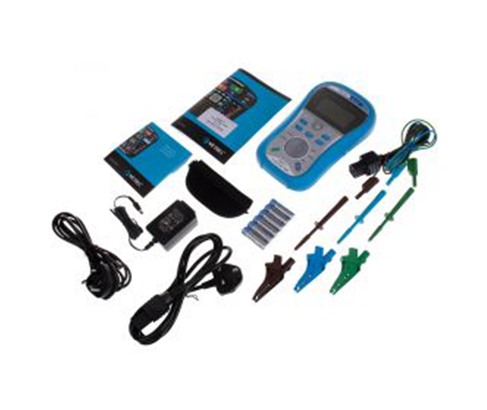

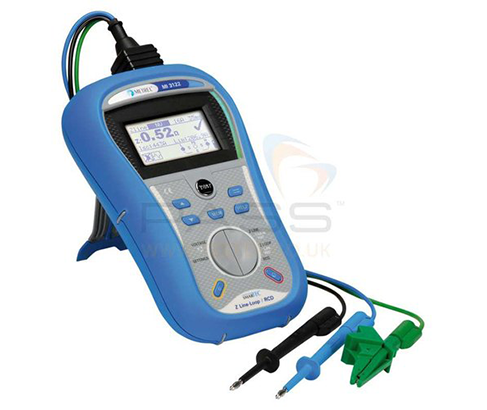

The MI 3122 SMARTEC Z Line-Loop / RCD is designed and developed for verification, maintenance and periodic testing of electrical installations; evaluation of protective measures in LV-installations, troubleshooting on live installations. Suitable for testing on CAT IV installations

Measuring Functions:

• Supports all live tests on LV electrical circuits:
  - Loop impedance / prospective fault current
  - Line impedance / prospective short-circuit current
• Built-in fuse characteristics for quick evaluation of measuring results
• RCD tests (trip out time, contact voltage, ramp test, Autotest)
• Testing on 1- and 3-phase systems
• Phase sequence test
• Metal test button for touch voltage detection
• High accuracy non tripping loop test for RCD protected circuits
• Pre-programmed limits
• PASS/FAIL evaluation of result
• Bright GREEN/RED indicators provides visual evaluation of results
• Suited for testing on CAT IV installations
• Magnetic holder allowes hands-free operation
• Built-in battery charger
• Two level memory structure for saving of test results and parameters
• Basic downloading with EuroLink PRO PC SW package
• Compatible with EuroLink PRO Plus PCSW package
• USB and RS232 ports
• Robust and ergonomic design
